Points of Sail Explained: A Beginner’s Guide to Understanding Wind Angles
Understanding the points of sail is one of the most important fundamentals in sailing. Whether you are brand new to the water or refining your skills, knowing each point of sail helps you control speed, balance your boat, and sail efficiently in any wind condition.
In this beginner-friendly guide, we will explain what the points of sail are, why they matter, when to use each one, and how wind angle shapes boat control and performance. We will also include a clear points of sail diagram to help you visualize how everything fits together.
What Are the Points of Sail?
The points of sail describe a sailboat’s direction relative to the wind. Instead of thinking in terms of compass directions (north, south, east, west), sailors think in terms of wind angle.
A sailboat can travel in different directions relative to the wind, and sailors use a circular diagram to visualize these points of sail, with the wind originating from the 12 o'clock position.
Every point of sail is defined by the angle between:
- The bow (front of the boat), and
- The direction the wind is coming from
Because sailboats cannot sail directly into the wind, the angle of the wind determines:
- How your sails are trimmed
- How fast you can go
- How stable the boat feels
- How efficiently you can reach your destination
Simply put, the point of sail you choose shapes everything about how your boat performs.
True Wind vs. Apparent Wind: Why It Matters
Before diving deeper into the points of sail, it’s important to understand the difference between true wind and apparent wind. The true wind direction is the fixed direction from which the wind is blowing over the water, unaffected by the boat's movement. The principal points of sail are defined relative to this true wind direction and roughly correspond to 45° segments of a circle, starting at 0° (directly into the wind).
True Wind
True wind is the wind measured from a stationary object. It’s the wind speed and direction reported by weather stations.
Apparent Wind
Apparent wind is the wind you actually feel while sailing. It’s a combination of:
- The true wind
- The boat’s speed
- The boat’s direction
As your boat moves forward, it creates its own airflow. This changes the angle and strength of the wind across your sails. In fact, when sailing fast—especially on a beam reach—the apparent wind often shifts forward, allowing you to trim sails differently and generate even more speed.
Understanding apparent wind is key to mastering the points of sail, because what you feel onboard may not match the forecast exactly.

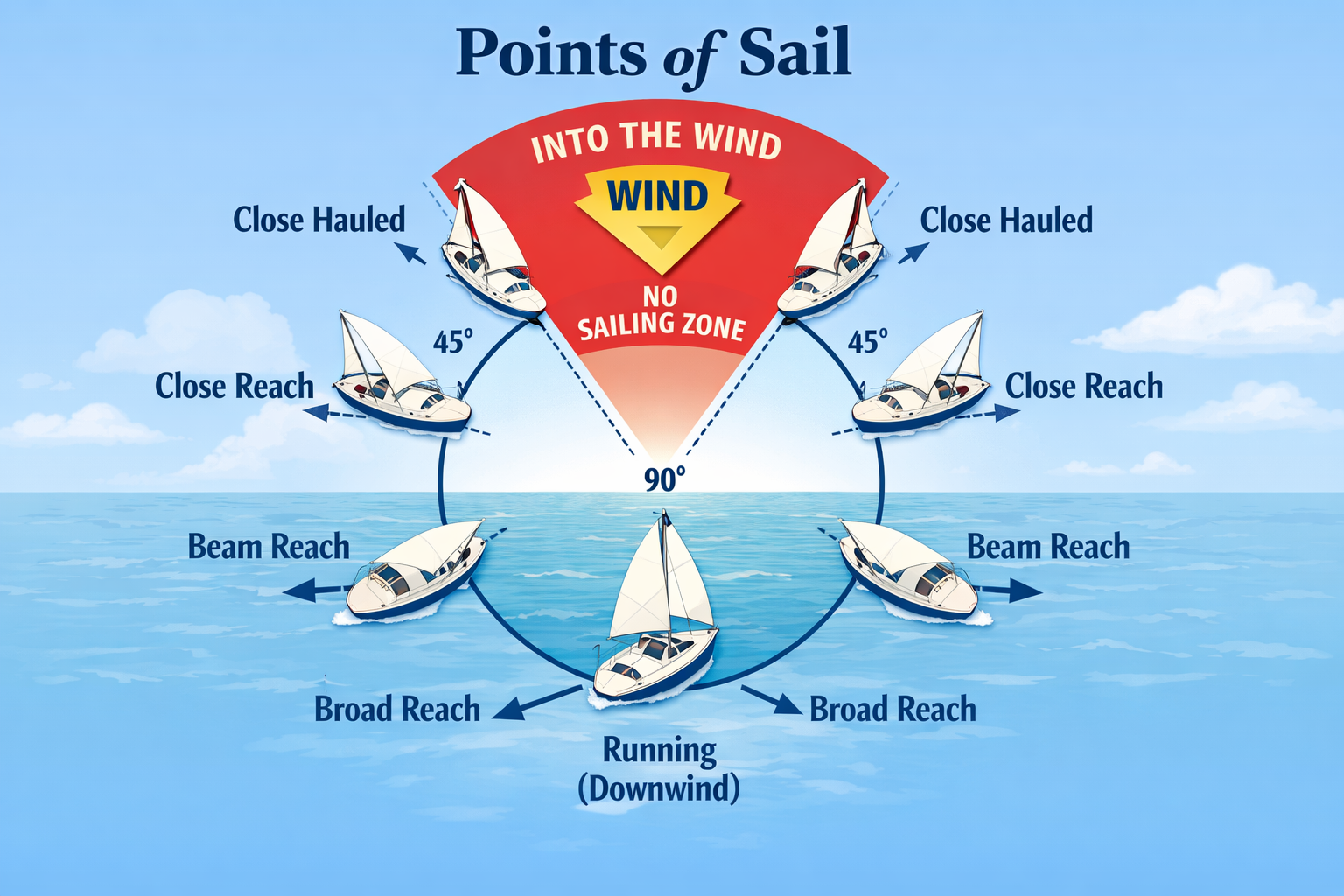

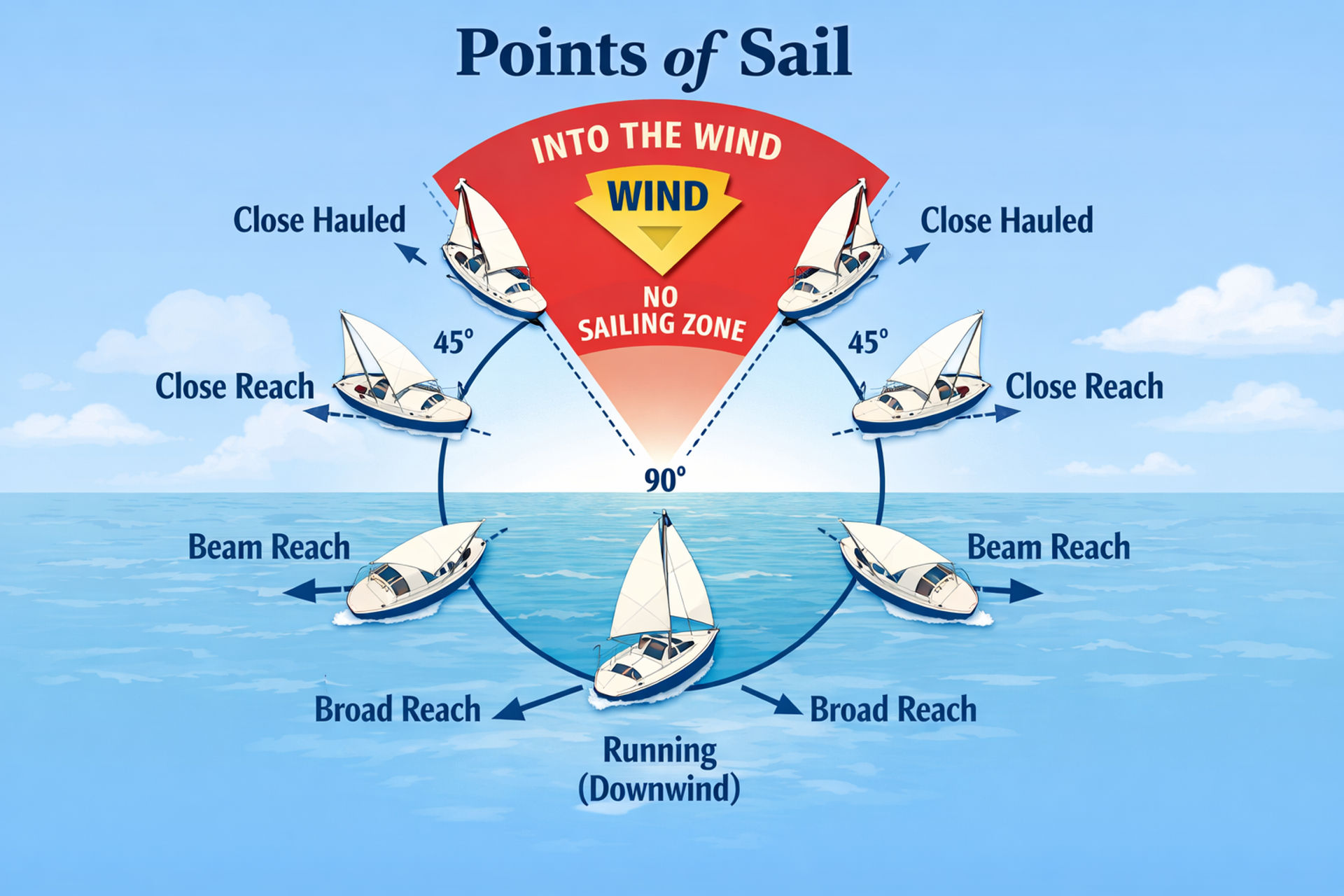

Points of Sail Diagram for Beginners
A points of sail diagram helps visualize how each wind angle relates to boat position. Below is a simplified beginner-friendly representation:
The No-Go Zone (In Irons)
Wind Angle: 0°–45°
Also Called: In Irons, No Sail Zone
This is the area directly into the wind, also known as the no sail zone. A sailboat cannot effectively sail or generate lift when pointed straight at the wind, so:
- The sails luff (flap)
Attempting to sail directly into the wind will cause your sails to luff, losing power and momentum. - The boat loses forward momentum
The no-sail zone extends roughly 45 degrees on either side of the true wind direction. - Steering becomes ineffective
A craft remaining in its no-go zone will slow to a stop—it will be 'in irons'.
You’ll pass briefly through this zone when tacking (turning the bow through the wind), but you cannot sail here intentionally. The span of the no-sail zone depends on the efficiency of a sailing craft's sails and its resistance to sideways motion.
Close-Hauled (Beating)
Wind Angle: Approximately 30-45°
Sail Trim: Sails sheeted in tight
Close hauled sailing is the point of sail closest to the wind, requiring an angle of 30-45 degrees relative to the wind. When sailing upwind, you’ll move in a zig-zag pattern called beating upwind, which involves tacking from one side to the other to make headway against the wind direction.
Sailing close hauled requires precise sail trim and positioning your sailboat at 30-45 degrees to the wind.
Why use this point of sail?
- To make progress upwind
- To reach a destination directly upwind
- For efficient upwind performance
Close hauled sailing requires precise sail trim and good steering control. The sails act like airplane wings, creating lift rather than simply being pushed by the wind.
Close Reach
Wind Angle: 60°–70° off the wind
Sail Trim: Slightly eased from close-hauled
A close reach is a point of sail where the boat is sailing at an angle slightly away from the wind. This angle provides a good combination of speed and control. The close reach is often faster and more comfortable than sailing close-hauled.
Why use this point of sail?
- For strong forward drive
- For smoother, less heeled sailing
- When you want both speed and control
Many sailors find this to be one of the most enjoyable and balanced points of sail.
Beam Reach (Often the Fastest Point of Sail)
Wind Angle: 90° (wind directly across the beam, sailing perpendicular to the wind) Sail Trim: Moderately eased (sails halfway)
A beam reach is when the boat is sailing perpendicular to the direction of the wind, or at a 90-degree angle. This is often considered the fastest and easiest point of sail, offering good speed and comfortable sailing. On a beam reach, the sails are let out to about halfway, balancing stability and speed.
The beam reach is frequently the fastest of all the points of sail. With the wind hitting the boat from the side:
- Sails generate powerful lift
- The boat accelerates efficiently
- Apparent wind increases
Why use this point of sail?
- To maximize speed
- For optimal sail shape and power
- For comfortable, controlled performance
Many sailors find the beam reach to be the easiest point to sail, as it provides a good balance of speed, stability, and ease of handling. If you want to experience the thrill of sailing at its best, a beam reach often delivers it.
Broad Reach
Wind Angle: Approximately 135°
Sail Trim: Sails eased out significantly
The broad reach point of sail occurs when the wind is blowing from behind the boat at an angle of 120-150 degrees off the bow. On a broad reach, the wind fills the sails from behind, propelling the boat forward and allowing for high speeds. Caution is needed to maintain control and avoid accidental jibes.
Why use this point of sail?
- For fast downwind travel
- When heading toward a leeward destination
- For comfortable cruising
The boat remains stable, and sails are eased out to capture wind efficiently. Many cruisers enjoy the broad reach for long coastal passages.
Running (Downwind)
Wind Angle: 180° (wind directly behind)
Sail Trim: Sails fully eased
When running, you are sailing directly downwind, sailing with the wind, and sailing downwind. The wind is coming from directly behind the boat, and the boat is moving in the same direction as the wind.
Running or dead run is when the boat is moving in the same direction as the wind at 180°, which is the most comfortable position but often the slowest speed-wise.
When running, the sails should be let out as much as possible. This point of sail allows for high speeds but comes with the least grade of stability, so it is important to maintain a safe distance from other vessels to avoid collisions and ensure safety.
Why use this point of sail?
- When traveling straight downwind
- During downwind race legs
- In steady, controlled conditions
While it may seem intuitive that running would be fastest, it’s often slower than a beam reach due to reduced apparent wind. Additionally, careful steering is required to avoid accidental jibes.
How Wind Angle Shapes Boat Control and Speed
Each point of sail affects the boat's direction, speed, and handling, and the optimal way to sail depends on the wind coming from different directions and the prevailing wind conditions. As the wind blows and shifts, sailors must understand how to adjust their course and sail trim to maintain control and performance. The boat's direction relative to the wind is fundamental, and leeward sailing, as well as sailing on one tack or the other, are important concepts for optimizing performance.
Sail Trim
Sail trim depends on the angle of the wind. Sail trim rules state that sails are eased out as the wind moves from the front to the back of the boat, and trimmed in as it moves from the back to the front. Proper sail trim is essential for effectively sailing on any point of sail.
Speed
The highest speeds are achieved on a reach, particularly when the true wind creates lift on the sails. The point of sail and wind strength both influence how fast a boat can go, with reaching often resulting in maximum velocity.
Steering Sensitivity
Wind shifts and changes in wind strength require sailors to transition smoothly and adjust their course. Essential maneuvers like tacking and jibing are fundamental for changing the boat's direction efficiently and smoothly. Mastering these maneuvers allows sailors to respond to changing wind conditions and maintain optimal performance.
Learn the Points of Sail at Naos Yachts in Marina del Rey
If you want to truly understand the points of sail, nothing replaces hands-on experience. A structured sailing course provides practical instruction and real-time feedback, helping you apply wind awareness, sail trim, and boat handling skills with confidence.
At Naos Yachts in Marina del Rey, we are proud to be an authorized American Sailing Association (ASA) and American Boating certified school offering professional sailing courses for sailors at every level. ASA 101 (Basic Keelboat Sailing) is the perfect starting point, introducing essential fundamentals such as identifying and sailing each point of sail, reading wind direction, proper sail trim, tacking and jibing, and core safety skills.
After building that foundation, ASA 102 (Keelboat Sailing 2) helps refine sail trim, improve boat handling precision, and develop more advanced performance techniques across all points of sail. Through hands-on instruction in real-world conditions, you will move beyond simply recognizing the points of sail and begin sailing them with true confidence and control.
Start Your Sailing Journey Today. Book a Sailing Lesson at Naos Yachts Today
Understanding the points of sail is the foundation of confident sailing. From the no-go zone to running downwind, each point of sail offers unique control, speed, and experience on the water.
If you’re ready to move beyond theory and truly master wind angles, we invite you to connect with us at Naos Yachts in Marina del Rey.
Contact us today to speak with our team or book your ASA 101 or ASA 102 class directly online. Your journey toward confident sailing starts here — and we look forward to welcoming you aboard.
FAQs
What are the points of sail in sailing?
The points of sail describe a sailboat’s direction in relation to the wind. Instead of using compass headings, sailors reference wind angles to determine sail trim, speed, and boat control. Each point of sail corresponds to a specific wind angle, such as close-hauled, beam reach, or running.
How many points of sail are there?
There are six primary points of sail: In Irons (No-Go Zone), Close-Hauled, Close Reach, Beam Reach, Broad Reach, and Running. Each point of sail represents a different angle between the boat and the wind. Understanding all six helps sailors maximize efficiency and control.
What is the fastest point of sail?
The beam reach is often considered the fastest point of sail. At approximately 90° to the wind, the sails generate strong lift and apparent wind increases, allowing the boat to move efficiently. Many sailors experience peak performance on a beam reach.
Why is understanding wind angle important in sailing?
Wind angle determines sail trim, boat speed, and overall performance. Without understanding the correct point of sail, a sailor cannot properly harness wind power. Mastering wind angles improves efficiency, safety, and confidence on the water.
Where can I learn to confidently sail all points of sail?
You can learn to confidently sail all points of sail at Naos Yachts in Marina del Rey, where we offer American Sailing and American Boating certified courses for every experience level. Our popular American Sailing 101 Basic Keelboat Sailing class provides hands-on instruction that teaches wind angles, sail trim, tacking, jibing, and boat control in real-world conditions.
